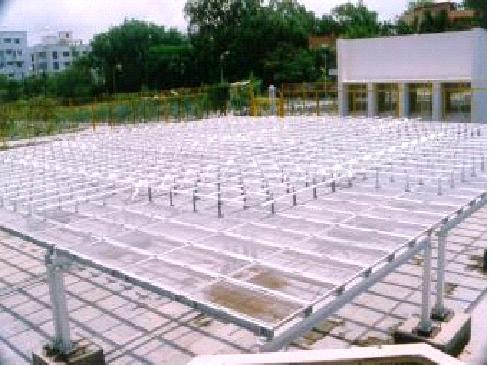

Site of WP/RASS A 404 MHz wind profiler/Radio Acoustic Sounding System (RASS) fabricated by the Society for Applied Microwave Electronics Engineering & Research,(SAMEER), Mumbai has been commissioned for utilization in the R & D mode at the India Meteoroloical Department(IMD) , Pune. The system is capable of measuring all three components of vector wind Viz. zonal, meridional and vertical wind velocities. The system as configured has a typical height coverage of 6-10 kms (depending on weather conditions) with a resolution of 300 meters for wind. In the Rass option for temperature measurement height coverage is 2-3 kms . |
|
Technical Specifications |
Operating Frequency |
404.37 MHz ± 0.250 MHz |
Pulse repetition Period |
60 Micro sec / 160 Micro sec |
Pulse Width |
2 Microsec(uncoded)/16 Micorsec (coded) |
Peak Transmit Power |
16 KW |
Duty Ratio |
10 % Maximum |
Maximum Unambiguous radial velocity / resolution |
15.7 mps / 0.2 mps |
Number of Coherent Integrations |
76 selectable |
Number of incoherent Integrations |
10 |
Number of FFT Points |
256 / 512 selectable |
Acoustic Out put power for RASS mode |
100 Watt (nominal) |
Type of Antenna |
Parabolic reflector with acoustic transducer |
Range of Acoustic frequencies for RASS |
940 to 980 Hz |
Radar Control Room houses a high power RF transmitter, duplexer and sensitive receiver / signal processor. Duplexer connects transmitter to the antenna during transmission and switches to the receive port when the high power transmit pulse has passed. |
